New 22 inch advertising screen floor-mounted DC Charger

Item Name	CHINAEVSE™️New 22 inch advertising screen floor-mounted DC Charger
Output Type	GBT/CCS2/CCS1/CHAdeMO/NACS
Input Voltage (AC)	400Vac±10%
Input Frequency	50/60Hz
Output voltage	200~1000VDC
Rated power	80kw~600kw
Certificate	TUV, CE, IEC61851
Warranty	2years

Product Detail

Techncial Specification
Model No.	CDZ-YC
Dimensions (W/H/D)	195021201090mm
Installation method	Floor-standing all-in-one machine
Wiring method	The bottom line is in, the bottom line is out
Weight	350KG-650KG
Number of guns output	2
Output gun type	GB/CCS2/CCS1/CHA/NACS
Meters of gun line	5meter (optional)
Input voltage	400Vac士10%
Enter the frequency	50/60Hz
Output voltage	200-1000VDC
Constant power output range	300-1000VDC
Rated power	80 KW-600KW
Maximum output current	3-250A (forced air cooling) 3-600A (Liquid cooling)
Internet	LAN, WIFI, 4G

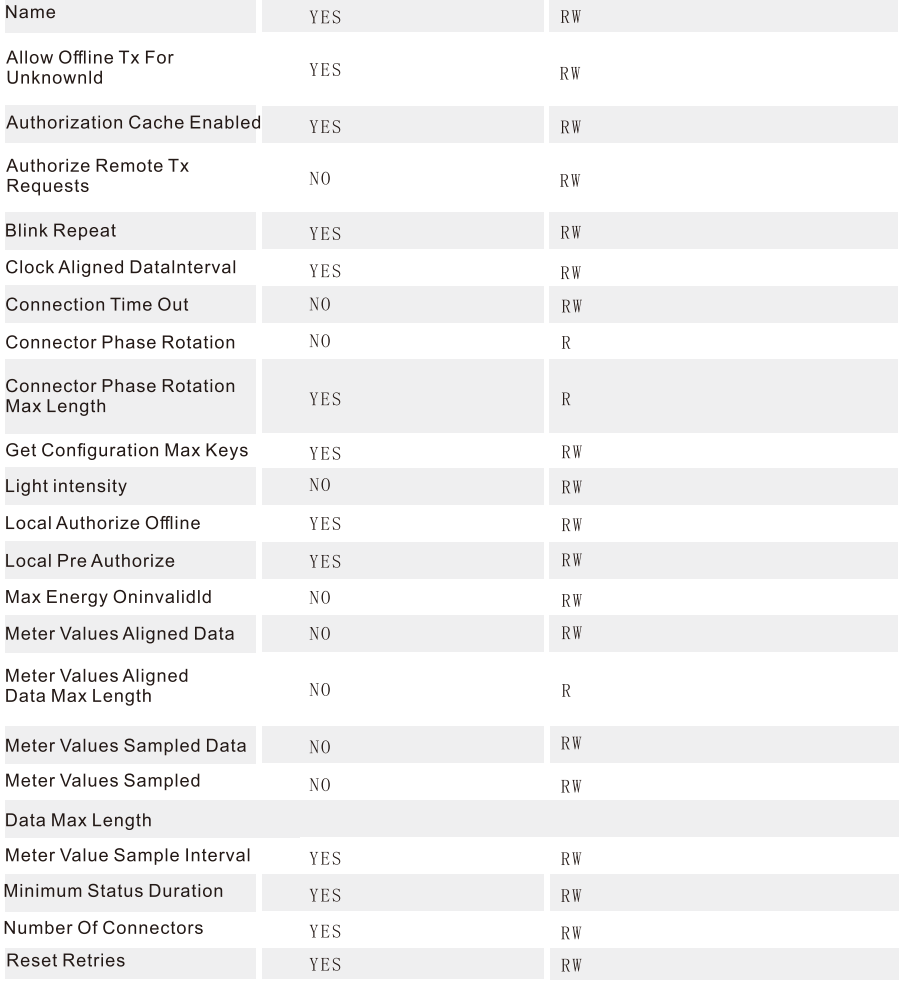

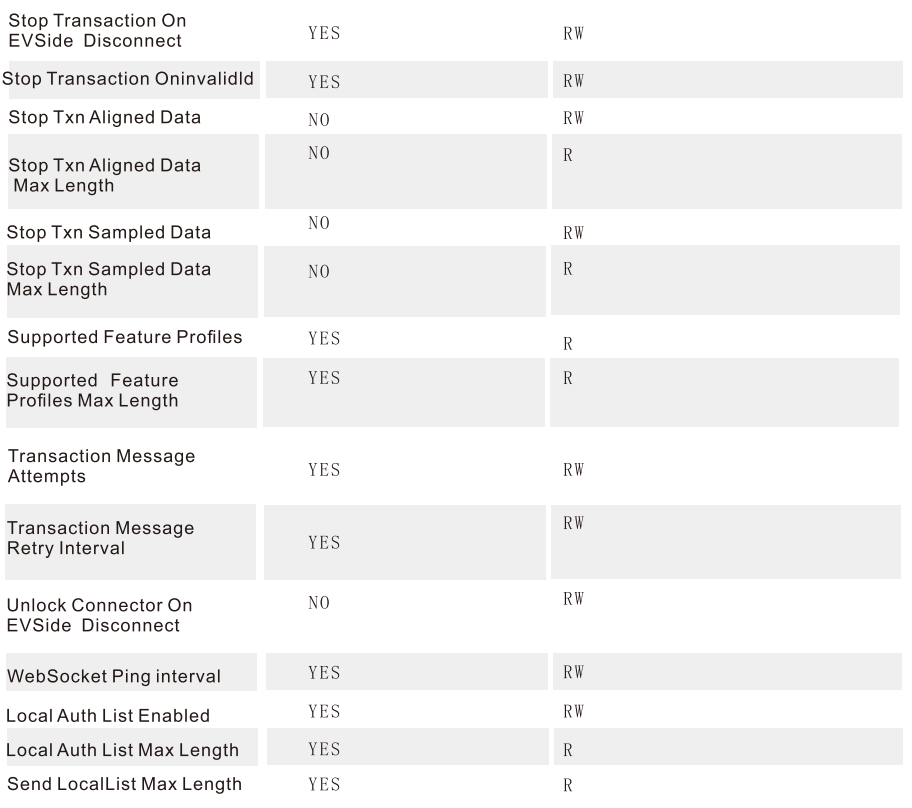

Communication protocols	OCPP1. 6J
Touch Screen	10. 1-inch touch screen
Display screen	22 inch advertising screen
Language	English
Startup mode	Swipe/ scan/password
Creepage	Type A
Applicable scenarios	Indoor/Outdoor
Operating temperature	﹣25°C~+50°C (-35°C~ -25°C. With heater)
Storage temperature	﹣40°C~+70°C
Operating humidity	<95% (Not in a condensing environment)
Noises	<65DB
Elevation	Below 2000m
Cooling method	Air-cooled
Ingress protection	IP54, IK10
Certificates	CE & IEC 61851, TUV certified
Reference protection	Under-voltage protection, over-voltage protection, overload protection, over-current protection, over-temperature protection, leakage protection, grounding protection, lightning protection, flame retardant protection
