CCS1 to NACS(Tesla) Cybertruck Adapter

Short Description:

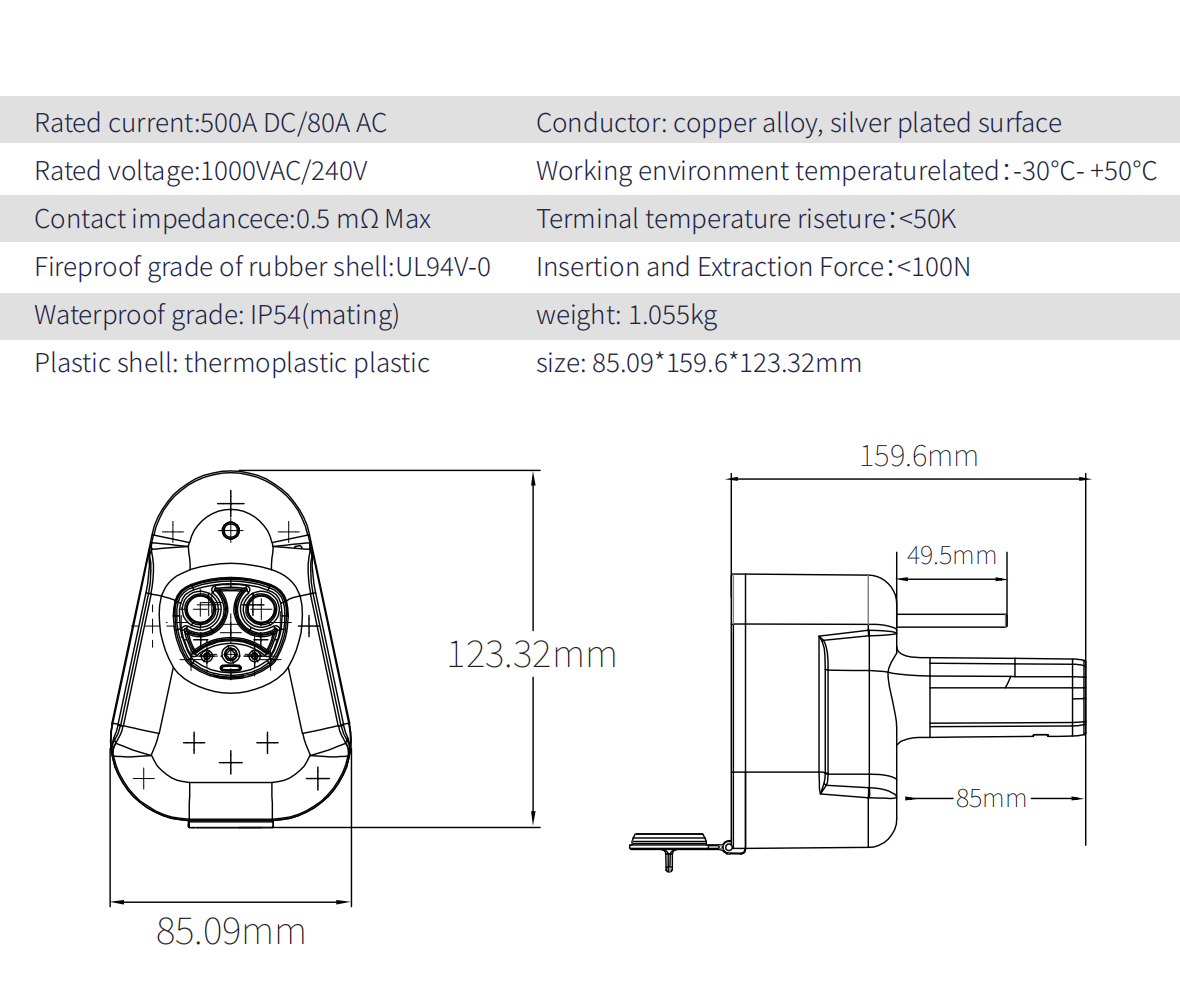

Item Name	CHINAEVSE™️CCS1 to NACS(Tesla) Cybertruck Adapter
Rated Current	500A DC/80A AC
Rated voltage	1000VAC/240V
Conductor	copper alloy, silver plated surface
Working temperature	﹣30°C to 50°C
Contact impedancece	0.5mΩ Max
Fireproof grade of rubber shell	UL94V-0
Insertion and Extraction Force	＜100N
Waterproof grade	IP54
Plastic shell	thermoplastic plastic
Certificate	FCC, RoHS
Warranty	5 Years
Weight	1.1kg
Size	85160123mm

Send email to us

Product Detail

Product Tags

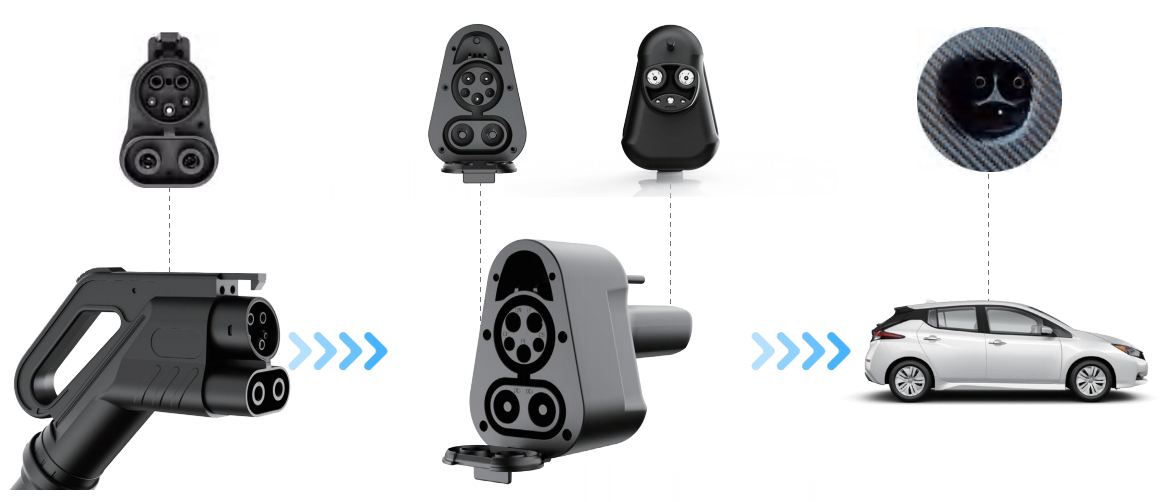

CCS1 to NACS(Tesla) Cybertruck Adapter COMPATIBILITY:

This adapter suitable for all NACS port equipped vehicles like all Tesla models Y/3/X/S, Cybertruck, Support both AC J1772 Type1 and DC CCS1 charging, AC Max rated current 80A, DC Max rated current 500A; AC Max rated voltage 240V, DC Max rated voltage 1000V, Some of other brands adapters with low rated current like 200A or 300A, which are too dangerous in charging with high power specially over 200kw.
